ASTM 1295 F136 Gr5 Ti6Al4V Titanium Round Rod Polished Surface

Name: ASTM 1295 F136 Gr5 Ti6Al4V Titanium Round Rod Polished Surface
Brand: LHTi
Price: 20.00 USD

Wholesale ASTM 1295 F136 Gr5 Ti6Al4V Titanium Round Rod Polished Surface from china suppliers

Brand Name : LHTi

Model Number : Titanium Rod

Certification : ISO9001:2015; TUV; SGS;BV

Place of Origin : China

MOQ : 30 kg

Price : $20.00~$30.00/kg

Payment Terms : T/T, MoneyGram, L/C, Western Union, Paypal

Supply Ability : 300000 kg per month

Delivery Time : 10-25 work days

Packaging Details : Plywood box with soft foam for additional protection,Standard Export package Titanium bar/rod will be packed in the plastic first and then use wooden case,wooden case or according to your order.

Diameter : 3mm-350mm

Material : Pure titanium

Surface : Bright,Polished,Pickling

Condition : Annealed; M

MOQ : 30 kg

Packing : Standard Export Packing

Contact Now

ASTM F136 10mm Gr2 Titanium Alloy Round Bar

Standard	ASTM B348/ASME SB348, ASTMF67, ASTM F136, ISO-5832-2(3), AMS4928, MIL-T-9047G, JIS etc
Grade	TA1-TA4, TA7-TA10, TA15-TA18, GR1-GR5, GR6,GR7, GR9, GR11, GR12, TI-6AL-4V, TI-6AL-4VELI,GR23
Diameter	5-350mm
Length	Max6000mm
Technique	Forging ,Machining
Surface	acid surface or polishing, sand blasted surface
Shape	Round, flat, square, hexagonal
Application	Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

Item Name	Titanium bar/titanium rod
Standard	ASTM B348,ASTM F67,ASTM F136, AMS 4928
Material	Gr1 Gr2 Gr3 Gr4 Gr5
Diameter	0.8~500mm
Length	500~6000mm or according to customers' request
Product Status	Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status
Shape	Round bar, square bar , hex bar
Feature	1.Polished surface without any defects free from cracks no pittings 2.Two ends flating making sure length torlerance and good looking
Certificate	ISO9001:2015, TUV, material test certificate acc EN10204.3.1

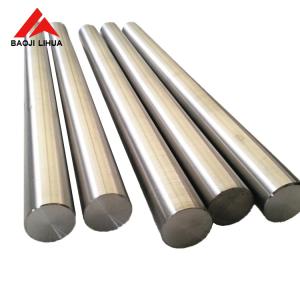

Product picture:

ASTM 1295 F136 Gr5 Ti6Al4V Titanium Round Rod Polished Surface
