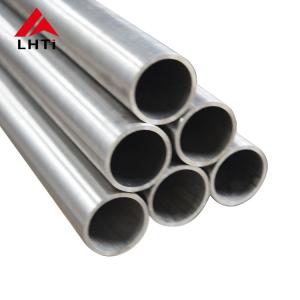

ASTM B338 Pickling Surface Straight Titanium Tube Gr1 GR2

  • 1
  • 2
  • 3

Brand Name : LHTI

Model Number : LH-01

Certification : ISO9001

Place of Origin : BaoJi Shaanxi China

MOQ : 1kg of each size

Price : US dollar $23/kg-US dollar $31/kg

Payment Terms : L/C, D/P, T/T, Western Union,Paypal.etc

Supply Ability : 5 tons per month

Delivery Time : 3-5 working days

Packaging Details : Each tube with environmental protection bags,outside is standard plywood case

Key words 1 : titanium tube

Key words 2 : GR2 titanium straight tube

Key words 3 : titanium pipe

Material : pure titanium

Grade : Grade 2

Purity : 99.5%min

Length : 1000mm in stock

Surface : pickling surface

Application : Industrial

Production time : 3 working days

Payment term : T/T,Paypal,Western union etc

Contact Now

ASTM B338 Titanium Tube Grade 1 GR2

This Titanium Exhaust Pipe GR2 is equipped with advanced process, which has the advantage of light weight, high strength and superior mechanical properties. Due to the high performance, our Titanium Exhaust Pipe GR2 plays an important role in heat exchange equipment, such as column and tube heat exchangers, coil and tube heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transmission pipes. On the other hand, it ensures longer service life for use and there is no special need of maintaining.

Chemical requirements
N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18
