Titanium seamless / welded tubing ASTM B338 pure titanium pipe gr2 titanium tube
1. Product Information of Titanium Tube
Standard: ASTM B338

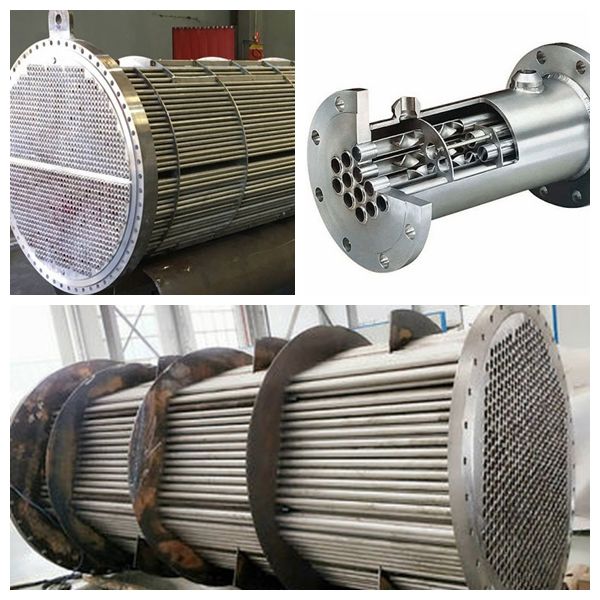

Application: heat exchanger and condenser
Material: Gr1, Gr2
Production Process: Welded or Seamless
Surface: Polishing, Pickling
Titanium Grade 1 is an unalloyed, low strength titanium product containing low oxygen with high formability; this titanium grade is used in airframes, heat exchangers and desalination units.
Titanium Grade 2 is an unalloyed, medium strength titanium product. Good weldability and corrosion resistance are its distinguishing characteristics.
2. Common Sizes of Titanium Tube
| OD | Thickness | Long |
| 12.7 | 1.0 | 4000 |
| 15.9 | 0.5 | 6000 |
| 15.9 | 0.7 | 3000 |
| 19.1 | 0.7 | 6000 |
| 19.1 | 0.7 | 7000 |
| 19.1 | 1.2 | 4000 |
| 19.1 | 1.4 | 5500 |
| 19.1 | 1.4 | 6000 |
| 19.1 | 1.4 | 4000 |
| 19.1 | 1.5 | 4000 |
| 21.7 | 3.0 | 4000 |
| 25.4 | 0.5 | 6000 |
| 25.4 | 1.0 | 4000 |
| 25.4 | 1.2 | 4000 |
| 25.4 | 2.0 | 4000 |
| 27.2 | 2.0 | 4000 |
| 31.75 | 1.2 | 6000 |
| 34.0 | 2.0 | 4000 |
3. Our Company
- As a leading manufacturer & trader of titanium tube for over 16 years, Baoji Lihua has exported our titanium tube to many countries, including the US, India and Korea etc. The quality of our products is widely recognized.
- We provide titanium tube with full set of ASTM B338 test or according to your requirements.
- Third-party test is also accepted, such as BV, SGS, TUV etc.
- Customized products are always welcomed.
- We know the market very well so our price will make you more competitive.
- We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.

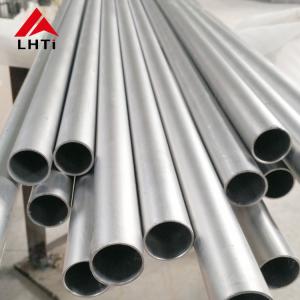

4. Detailed Images of Titanium Tube
5. Chemical Requirements of Titanium Tube
| | N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
6. Tensile Requirements of Titanium Tube
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) |
| ksi | M Pa | ksi | M Pa |
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
7. Our Services
(1) We have the stocks so we would provide our clients the short delivery time.
(2) Strict control from raw materials till products finished, so the quality is guaranteed.
(3) Customized sizes are offered as well as specified sizes and multiple sizes.
(4) Strict quality test from raw material to product.
(5) Original mill sheet test reports EN 10204.3.1 is available.
