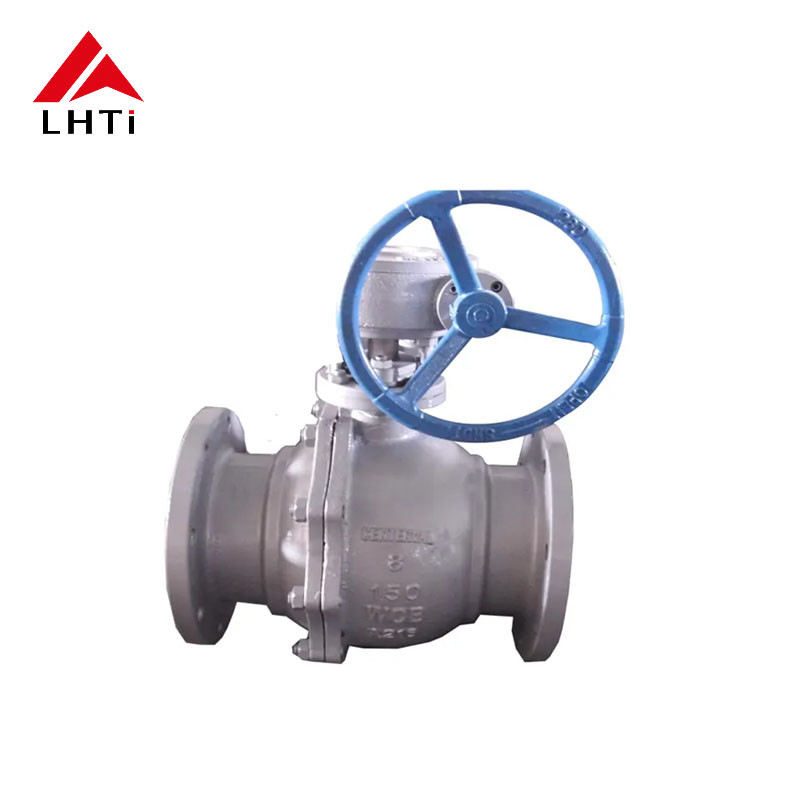

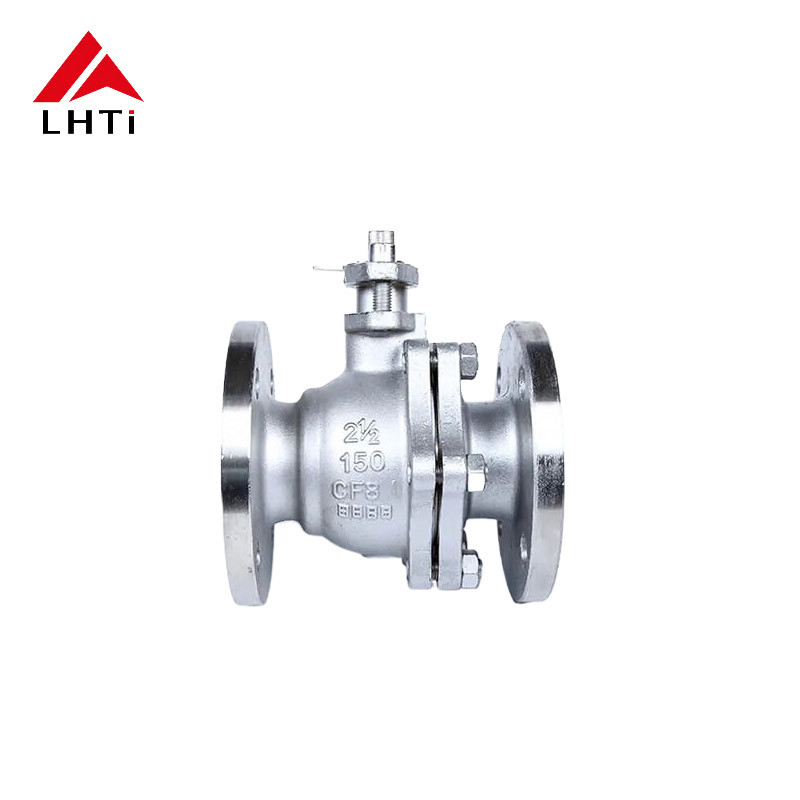

Gr5 Titanium Ball Valves The Ultimate Combination of Strength and Lightweight

  • 1
  • 2

Brand Name : LHTi

Model Number : V Port Titanium Ball Valve

Certification : ISO9001,CE,etc

Place of Origin : Baoji, China

MOQ : 1 piece

Price : negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 5000 Pieces Per Month

Delivery Time : about 5-14 days for delivery

Packaging Details : Plywood case or pallet, or as per your requirement

Flow Pattern : Bi-directional

Locking Device : Optional

Type : 2 Piece Ball Valve

Cavity Pressure Relief : Yes

Fire Safe : Yes

Body Type : One-piece, Two-piece, Three-piece

Ball Grades : Gr1 Gr2 Gr5 Gr9 Gr23 etc.

Features : Biological compatibility,Non-Magnetic

End Connections : Flanged (ANSI, JIS, DIN, GB)

Surface : Metallic luster

Fire Safe Design : API 607, API 6FA

Temperture : -196°C to 350°C (-320°F to 662°F)

Stem Material : Titanium, Stainless Steel

Certifications : API 6D, API 607, ISO 9001

Surface Treatment : polished mirror bright

Contact Now

Gr5 Titanium Ball Valves: The Ultimate Combination of Strength and Lightweight
Performance Analysis for High-Pressure Systems
In high-pressure oil and gas systems, material selection is critical. Grade 5 (Gr5) titanium has emerged as a superior choice due to its exceptional strength-to-weight ratio, lightweight properties, and outstanding corrosion resistance. This analysis examines Gr5 titanium ball valves' performance attributes, highlighting their reliability and efficiency in demanding high-pressure applications.
Understanding Grade 5 Titanium
Grade 5 titanium (Ti-6Al-4V) consists of approximately 90% titanium, 6% aluminum, and 4% vanadium. This alloy offers excellent mechanical properties, including high tensile strength and low density, making it ideal for applications requiring both strength and weight considerations. The alpha and beta phases in its microstructure contribute to its exceptional strength-to-weight ratio, enabling robust designs that maintain performance under extreme pressure conditions.
Corrosion Resistance in High-Pressure Environments
Gr5 titanium demonstrates superior corrosion resistance compared to traditional materials like stainless steel. In high-pressure systems with aggressive media such as sour gas or corrosive chemicals, titanium's passive oxide layer protects against pitting, crevice corrosion, and stress corrosion cracking. This self-healing layer ensures valve integrity in harsh environments, minimizing failure risks and maintaining operational continuity.
Mechanical Properties and Performance
Gr5 titanium boasts impressive mechanical properties with tensile strength of approximately 1,200 MPa and yield strength around 1,100 MPa. These characteristics allow valves to withstand high internal pressures without deformation. The material's hardness provides excellent wear resistance, while its ability to endure cyclical loading without significant fatigue makes it ideal for high-pressure fluid control systems.
Design Considerations
Gr5 titanium enables innovative valve designs that optimize fluid flow while maintaining structural integrity. Features such as V-port or multi-port designs provide precise flow control, while titanium's lightweight nature facilitates compact valves for space-constrained installations. This design flexibility allows engineers to meet specific operational requirements in high-pressure environments.
Testing and Validation
Rigorous testing ensures Gr5 titanium ball valve reliability in high-pressure applications. Hydrostatic testing subjects valves to pressures exceeding maximum ratings to assess leak rates, deformation, and structural integrity. Fatigue testing simulates real-world operating conditions through repeated stress cycles, validating long-term performance and durability.
Key Advantages
  • Precise Control: V-port design enables accurate flow rate modulation
  • Exceptional Corrosion Resistance: Performs reliably in challenging environments
  • Superior Durability: Robust construction minimizes maintenance and downtime
  • High-Temperature Performance: Operates effectively in elevated temperature settings
  • Lightweight Strength: Optimal strength-to-weight ratio for efficient designs
Industrial Applications
  • Chemical Industry: Handling corrosive media including acids, alkalis, and oxides
  • Petroleum and Natural Gas: Controlling fluid flow and pressure in extraction, transportation, and processing
  • Marine Engineering: Seawater corrosion resistance for subsea pipelines and offshore platforms
  • Aerospace: Lightweight, high-strength properties for hydraulic and fuel systems
  • Food and Pharmaceutical: Non-toxic, contamination-free fluid control
Technical Specifications
Pressure Rating PN1.6-4.0Mpa Class150-300Lb
Nominal Diameter DN25-DN350 1"-14"
Drive Mode Worm Gear, Pneumatic, Hydraulic, Electric
Body, Bonnet Materials TA1, TA2, TA10, Gr2, Gr3
Ball Materials TA1, TA2, TA10, Gr2, Gr3
Stem Materials TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Sealing Ring Materials PTFE, RPTFE, PPL, PEEK
Design Standards GB/T12237, ASME B16.34
Face-to-Face Dimensions GB/T12221, API6D, ASME B16.10
Flange Connections HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Testing Standards JB/T9092, GB/T13927, API6D, API598
